Unitree G1 Head Module Review

Purpose and configuration

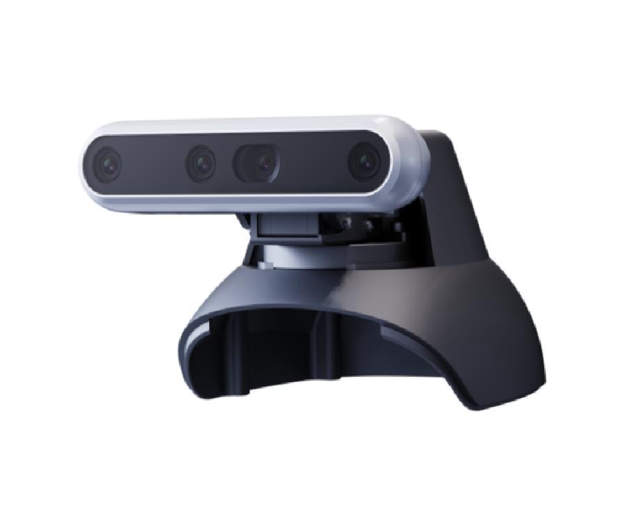

The Unitree G1 Head Module is a two-axis perception assembly designed for the Unitree G1 humanoid platform. It combines a moving head mechanism with an Intel RealSense D455 depth camera, giving a G1 installation an articulated viewpoint rather than a fixed sensor position. That makes it relevant to embodied-AI research, human-robot interaction, teleoperation, and perception experiments where camera pose matters.

What stands out

The key differentiator is the pairing of pan-and-tilt head movement with a named depth camera. The RealSense D455 is a recognizable stereo-depth camera family, and placing it on a movable head can improve scene coverage and support viewpoint-dependent data capture. The module is identified as G1-Head-Module, with a listed price of $3,800, China origin, and a stated 12-month warranty.

Technical limits to resolve

The published product identity does not answer the integration questions that determine deployment success. Buyers should obtain the head motion range and speed, mechanical drawing, mass, payload limits, connector pinout, power budget, cable routing guidance, supported G1 variants and firmware, calibration workflow, and the exact RealSense software support. The installed camera field of view, depth accuracy, frame rate, and performance under the intended lighting conditions should also be validated on the finished robot.

Best fit

This module suits teams building a defined G1 configuration for laboratory work, developer education, interactive demonstrations, or perception prototypes. It is less compelling for a project that needs a complete, turnkey sensing package with documented environmental qualification or safety validation. Its value depends on access to the required installation and software documentation.

Buying guidance

Before procurement, confirm the supplied bracket, fasteners, cables, camera revision, G1 hardware revision, firmware compatibility, power and data interface, calibration requirements, support process, and warranty coverage. A bench evaluation should test depth-stream stability, head clearance, cable strain relief, lighting performance, and behavior across the motions required by the application.

Verdict

The G1 Head Module is a purposeful perception upgrade, not a generic camera add-on. Its two-axis mechanism and Intel RealSense D455 give it a credible role in G1 research and interaction projects, but the purchase should follow a configuration-specific technical review. For teams that can verify the integration package, it is a promising component; for teams needing documented performance out of the box, the missing engineering details remain a meaningful risk.
